Product number:
AS-H12SSL-C-B
EAN:
672042423330
Manufacturer no.:
MBD-H12SSL-C-B

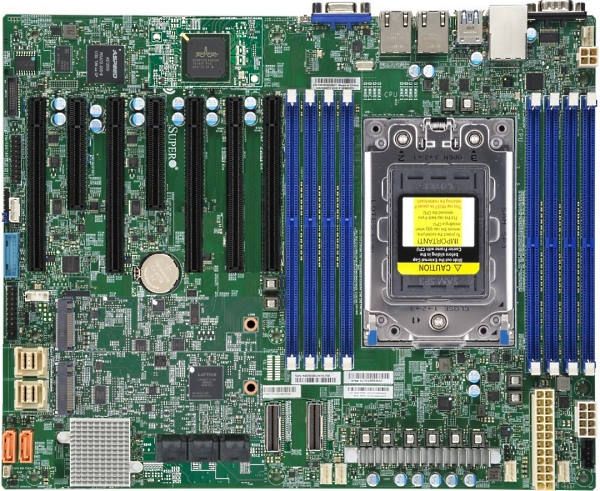

Product information "Supermicro Motherboard H12SSL-C (bulk pack)"
Single AMD EPYC(TM) 7003/7002 Series Processors
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Expansion slots:
5 PCI-E 4.0 x16
2 PCI-E 4.0 x8
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
8 SATA3, Broadcom 3008 SAS3 (12 Gbps) controller for 8 SAS3 ports, 2 M.2
2 Gigabit Ethernet LAN Ports
ASPEED AST2500 BMC graphics
Up to 6 USB 3.0 ports
(4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring
Form Factor: ATX
Dimensions: 12" x 9.6" (30.5cm x 24.4cm)
| CPU Sockel: | 1 (UP) |
|---|---|
| CPU Socket type: | Socket SP3 |
| Chipsatz: | System on Chip |
| DRAM Slots: | 8 |
| DRAM Typ: | DDR4 |
| Formfaktor: | ATX |
| Hersteller: | Supermicro |
| Onboard LAN: | 1Gbit/s |
